Peddinghaus Ocean Avenger 2006 CNC Drill System, I H Beamline
Have one to sell?
ConditionUsed
1 available

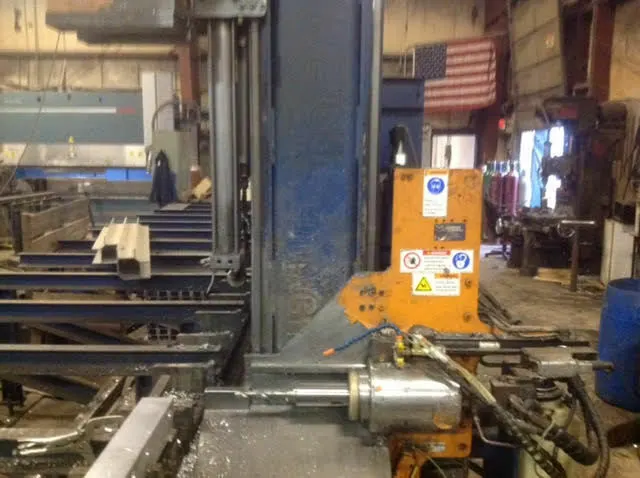

2006 Ocean Avenger/ Peddinghaus Model 1000/1B 1 1/4" CNC Drill/ Beam Line.
Equipped with Siemens CNC Control.
Max Beam Capacity: 40" x 60'
Max Drill Diameter: 1-9/16" @ 100 % Duty Cycle
Max Drill Diameter: 2" @ Reduced Production
Material Thickness: 1-1/4"
Min. Drill Diameter: 1/4"
Max Thickness: 10"
Max Speed X-Axis: 120ft per minute
Max Speed Y-Axis: 120ft per minute
Spindle Motor: 20 HP
Spindle Speeds: 200-850 RPM variable
Drilling Feed Rate: 2"-10" per minute variable
Max Spindle Stroke: 13
Average Output: 200-400 HPH
