New Dual Station Mubea Ironworker 55 / 60 / 65 Ton Hydraulic Punch, Uses Geka Punches
Have one to sell?
ConditionNew
1 available
New

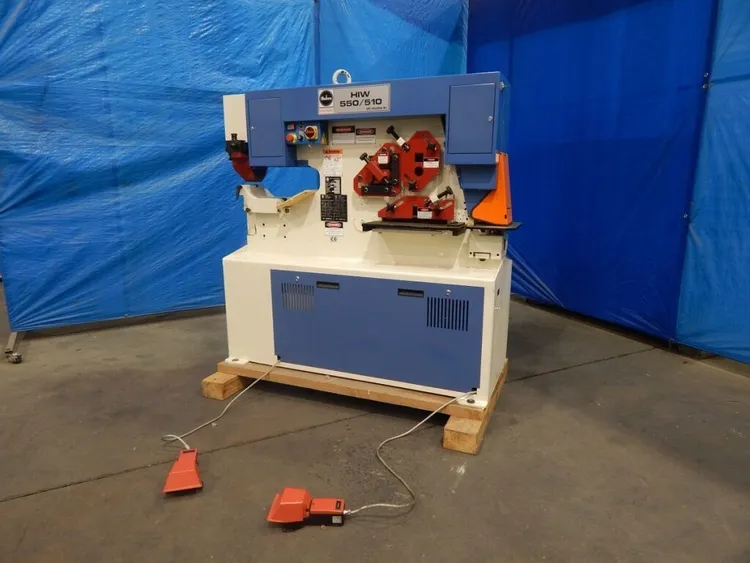

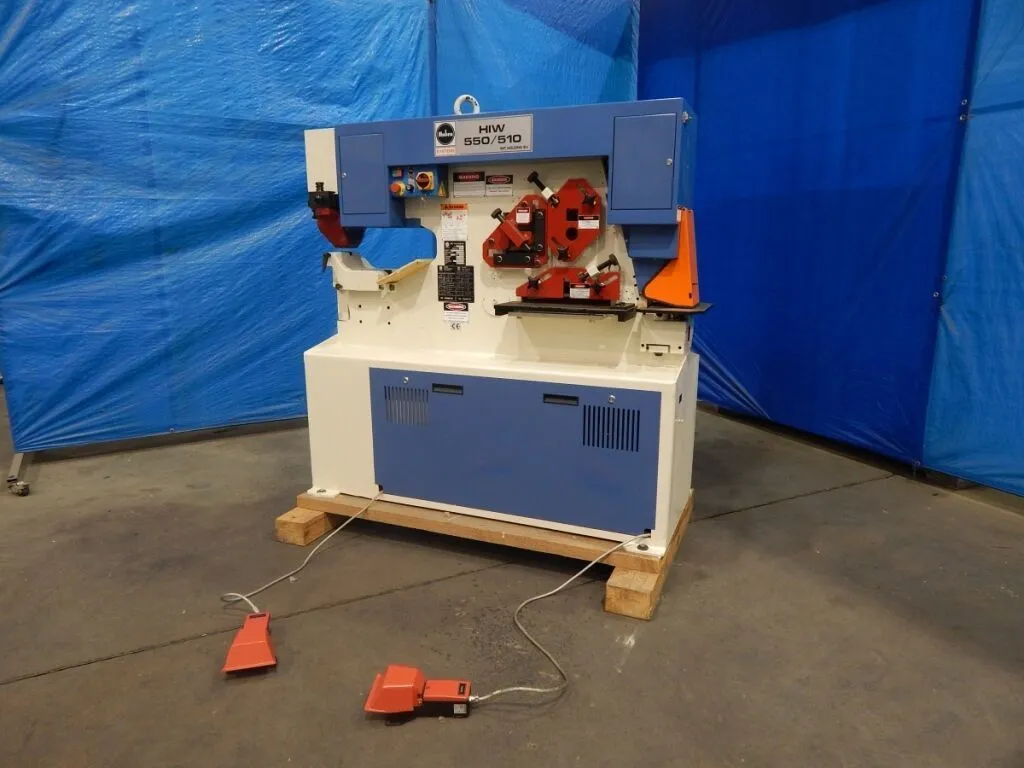

New Mubea Hydraulic Ironworker / Steelworker.
German design and built.
Motor: 7.5HP
New Weight: 3,700 lbs
Dimmensions: 64"L x 30"W x 62"H
Capacities listed below based on material 65,000 psi and 28 ton/sq. in Tensile Strength.
Rated Capacity: 62 Tons
Maximum Capacity: 1-1/4" x 5/8"
Maximum Hole Size With Special Equipment: 4" x 3/16"
Infinitely Variable Stroke Length: 0" - 2-3/8"
Throat Depth: 20"
Working Height: 41-3/8"
Guided Cylinder with adjustment Gooseneck Die Saddle with hardened saddle insert tools:
"Quick Change" Punch Holder-H3 up tp 1.9/16":
Adjustable slide back stripper with safety guarding:
Hydraulic Center Spotter in Foot Pedal:
Shearing: Flat Bar: 14" x 1/2" or 9" x 3/4"Blade Length: 14-3/16"Automatic Adjustable HolddownSwing away Door for easy access to cutting bladesSupport Table and Mitering Guide is standard2.5 degree Rake Angle for precision shearingWorking Height: 34"Bar Shear:Round Bars: 1-3/4"Square Bars: 1-5/8"Channels and I-Beams: 4"Tees 90 degree: 2-3/4"Angle Cutting:At 90 degrees: 5" x 5" x 1/2"At 45 degrees: 3" x 3" x 5/16"Working Height: 41-3/8"Notching:Material Thickness: 3/8"Width: 1-3/4"Depth (Rectangular): 3-1/2"Angle Flange: 3"Working Height: 34"
