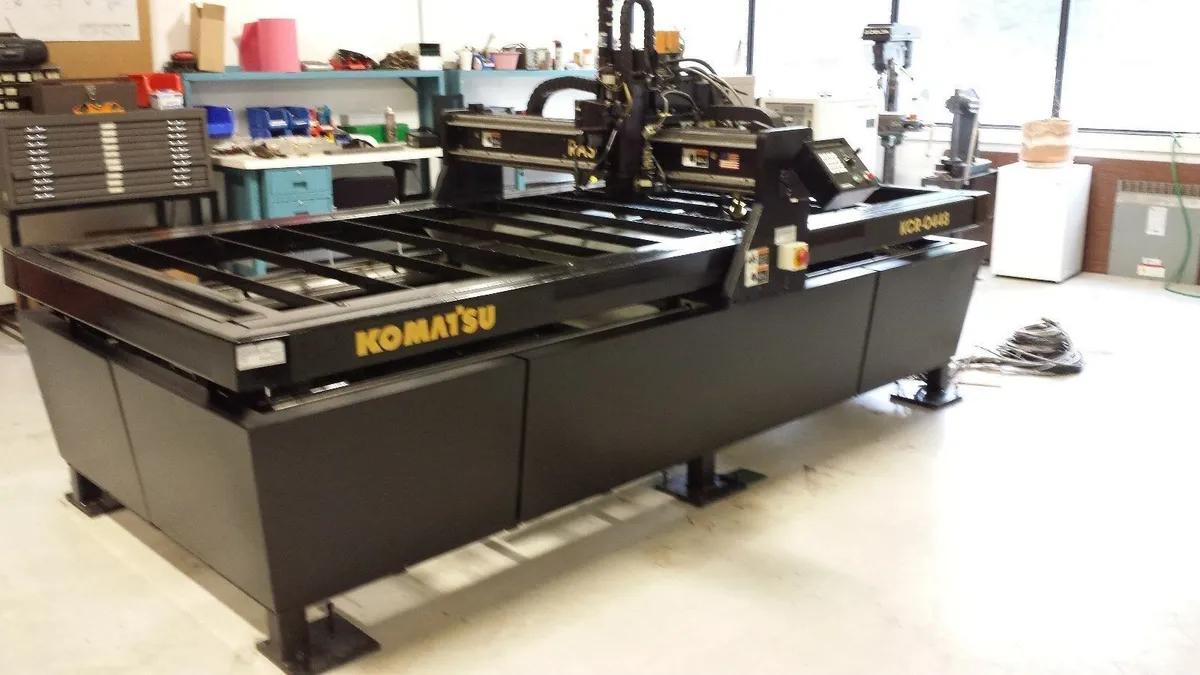

Welded box beam construction, Open BridgeDual side rack and pinion Simple alpha numeric joystick control with parameter input Parameter storage for cutting conditions Positional accuracy ± 0.004 in., repeatability 0.002 in.Magnetic field to control plasma arc column Torch height control with setup probe Pierce height accuracy ± .015 inches Tested and verified machine accuracy Simple consumables setup, 1 electrode, 3 nozzle sizes Bevel angle ± 2 degrees
Max Cutting Length: 8'
Max Cutting Width: 4'
Mild Steel Capacity: 0.028"-0.25"
Aluminum Steel Capacity: 0.028"-0.187"
Stainless Steel Capacity: 0.028"-0.187"
Minimum Kerf Width: 0.031"
Cutting Speed Range: 30-300 IPM
Rapid Traverse Speed: 500 IPM
Variable Cutting Current: 3-40 Amps
Plasma Power Unit: Komatsu G940-I
Plasma Power Poser Requirements: 230 volt/3 phase 50/60Hz - 11.0 KVA
Control Unit: LCD Display, Alpha-Numeric, Keypad, Joystick
Machine (CNC) Power Requirements: 120 volt/single phase, 50/60 Hz
Torch Height Control: Innerlogic RSVP 101
Machine Weight: 3,200 lbs
Floor Space Requirements: 7' x 14'
Software: Rasor Server for Windows - DNC SoftwarePathMaster - part drawing software, DXF importRasor Nest - nesting software
