Welded box beam constructionHeavy duty center drive with dual side rack and pinionDrawers for scrap and small part retrievalSimple alpha numeric joystick control with parameter inputParameter storage for cutting conditionsPositional accuracy ± 0.004 in., repeatability 0.002 in.Magnetic field to control plasma arc columnTorch height control with setup probePierce height accuracy ± .015 inchesAutomatic voltage control maintains cutting height at over 100in/minHemispherical collision detection systemTested and verified machine accuracyQuicksilver process: clean cut stainless steel and aluminumAbility to process polyethylene coated materialsSimple consumables setup: 1 electrode, 3 nozzle sizesBevel angle ± 2 degrees
Max Cutting Length: 10'
Max Cutting Width: 5'
Mild Steel Capacity: 0.062"-0.5"
Aluminum Steel Capacity: 0.062"-0.5"
Stainless Steel Capacity: 0.028"-0.5"
Minimum Kerf Width: 0.06"
Cutting Speed Range: 30-300 IPM
Rapid Traverse Speed: 1000 IPM
Variable Cutting Current: 3-90 Amps

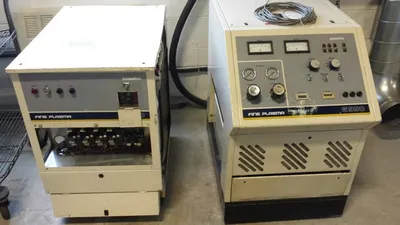

Plasma Power Unit: Komatsu G990-I
Plasma Power Poser Requirements: 230 volt/3 phase 50/60Hz - 27.0 KVA

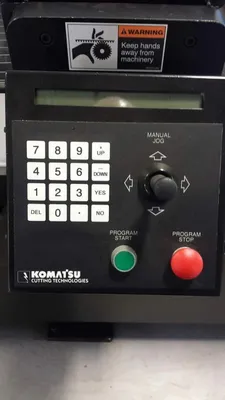

Control Unit: LCD Display, Alpha-Numeric, Keypad, Joystick
Machine (CNC) Power Requirements: 120 volt/single phase, 50/60 Hz - 2.4 KVA
Torch Height Control: Komatsu control with setup probe
Machine Weight: 4,800 lbs
Floor Space Requirements: 16' x 30'
Software: Rasor Server for Windows - DNC SoftwarePathMaster - part drawing software, DXF importRasor Nest - nesting software
