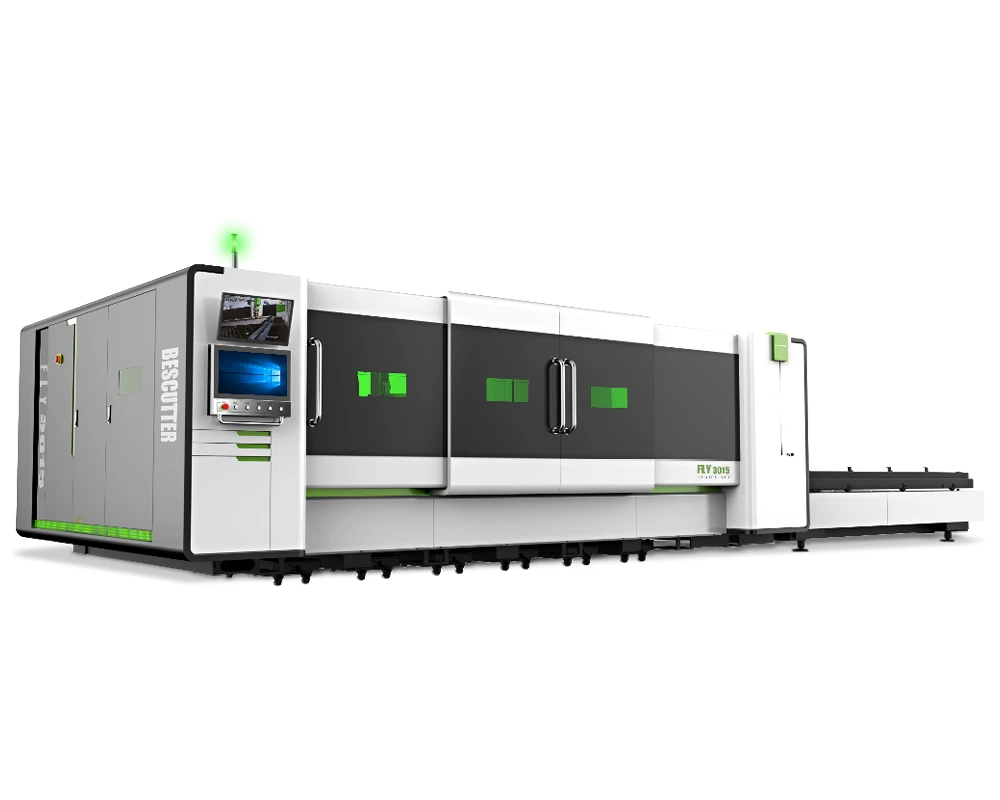

Fly Speed 1.5-6KW Fiber Laser Metal Sheet Cutter Full Enclosure with Parallel Shuttle Table
Have one to sell?
ConditionNew
1 available
New
IPG laser resonator Auto energy saving mode Parallel Shuttle Exchange Table Easy Operation - The front door is on the Y axis, easy for operator to reach whole working area Swiss Imported Reducer and Rail System: Dual drive structure, high precision Swiss GUDEL reducer and Germany Rexroth guide rail system, small transmission error, high precision and good dynamic performance.
Standard working area: 61" x 120" (3050 x 1550 mm)
Optional working area: 157" x 78.7"/ 236" x 98.4"
Optional Laser Wattage: 1500W/ 2000W/ 3000W/ 4000W
X, Y, Z axis distance: 61" (3050 mm)/120" (1550 mm)/3.93" (100 mm)
X, Y Two-axis coordinated positioning speed (MAX) : 140 m/min
Positioning acceleration (MAX): 1.4 G
Positioning accuracy: ±0.05 mm/m
Re-positioning accuracy: ±0.02 mm
Maximum load weight: 1543 lbs
Laser resonator: IPG
Laser head: Raytools (Precitec optional)
Controlling System: CypCut (Beckhoff optional)
X-Y-Z Servo Motors: X-2x2900W; Y- 1x850W ; Z-1x750W
Machine Weight: 20945 lbs (9500 kg)
Dimensions: 350"x 118" x 83" (8900 x 3000 x 2100 mm)
