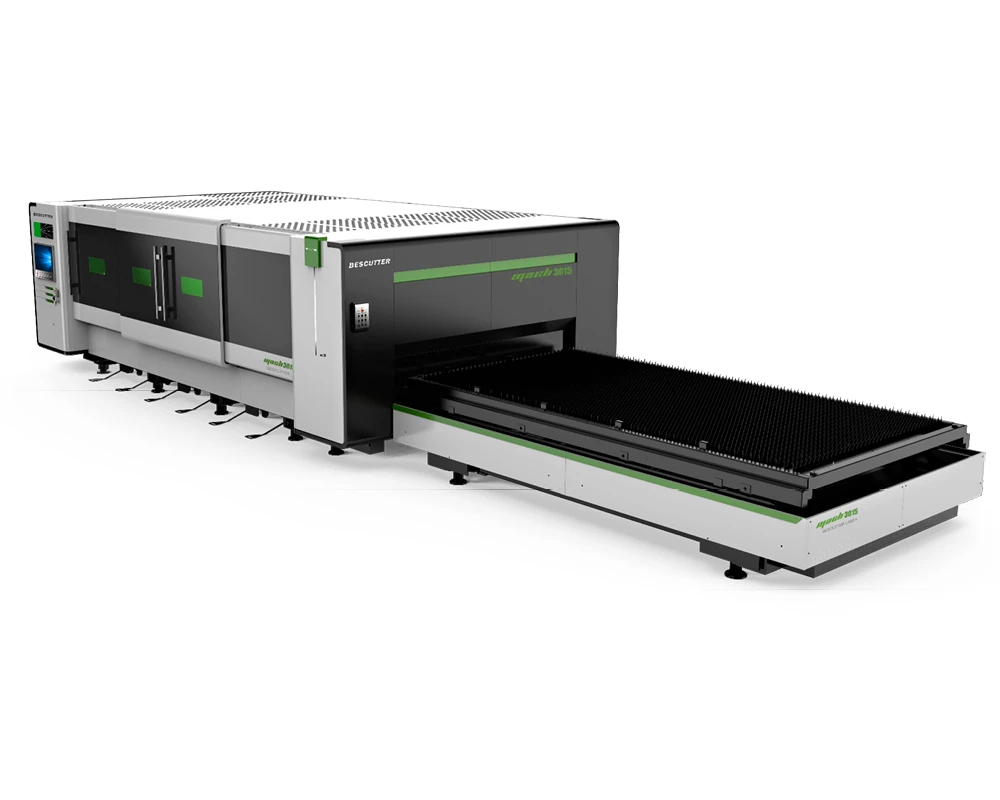

Mach Speed 6-15KW 5'x10' IPG Fiber Laser Cutter Fully Enclosed with Hydraulic Shuttle Table
Have one to sell?
ConditionNew
1 available
New
Germany brand of major componentsIPG laser resonator PRECITEC laser cutting headBeckhoff CNC controlling systemDirect drive system with high torque servo motorAuto energy saving modeAuto exchanging table with hydraulic lifting system Eagle eye technology (optional)
Standard working area: 61" x 120" (3050 x 1550 mm)
Optional working area: 157" x 78.7"/ 236" x 98.4"/ 315" x 98.4"
X, Y, Z axis distance: 61" (3050 mm)/120" (1550 mm)/3.93" (100 mm)
X, Y Two-axis coordinated positioning speed (MAX) : 240 m/min
Positioning acceleration (MAX): 2.4 G
Positioning accuracy: ±0.05 mm/m
Re-positioning accuracy: ±0.02 mm
Maximum load weight: 890 kg
Laser resonator: IPG (Germany Brand)
Laser head: PRECITEC (Germany Brand)
Controlling System: Beckhoff (Germany Brand)
X-Y-Z Servo Motors: X-2x9700W; Y- 1x6880W ; Z-1x940W
Machine Weight: 28200 lbs (12800 kg)
Dimensions: 350"x 118" x 87" (8900 x 3000 x 2200 mm)
IPG-YLS Specification: YLS-6000
Laser mode: CW,QCW
Wavelength: 1070-1080nm
Standard output laser power: 6000W
Laser beam quality: ≤4mm*mrad
Modulation speed: 5kHz
Delivery fiber core diameter: ≥50μm
Output stability: ±2%
Power supply: 400-460V/3P+PE@50-60Hz
