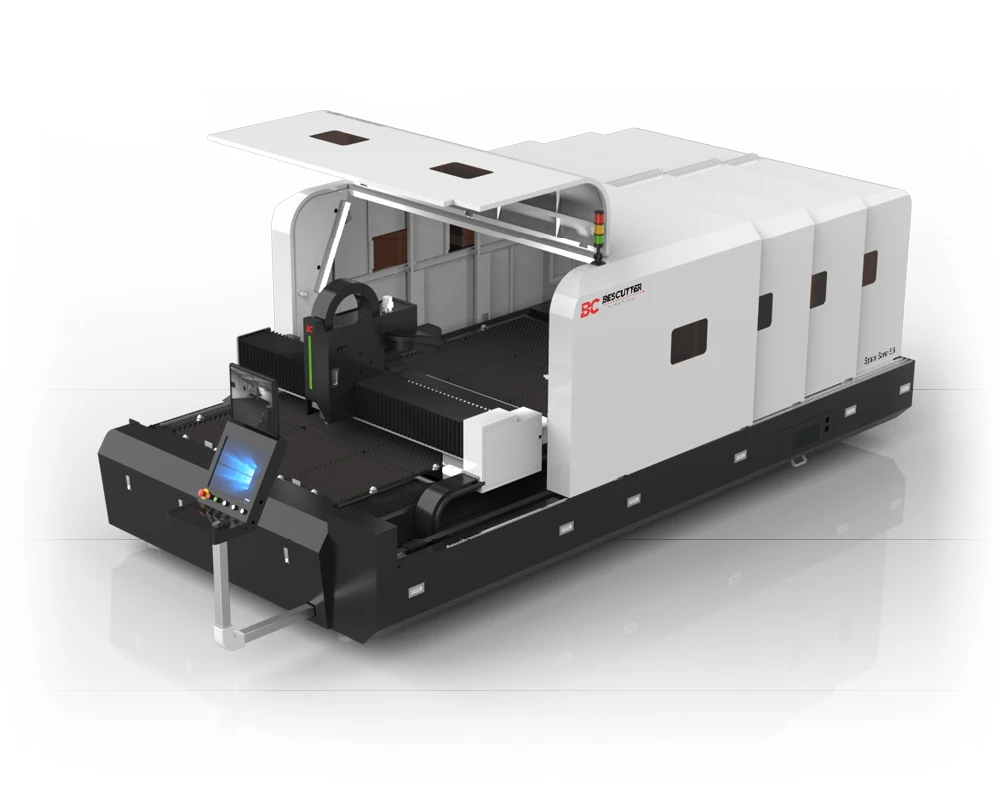

Space Saver 1500-4000W 5'x10' Fiber Laser for Metal Sheet Cutting
Have one to sell?
ConditionNew
1 available
New
IPG Laser ResonatorCompact design with safety enclosure. Ideal for shop with limited space.Full enclosure with retractable housing. Easy loading and unloading.Space Saving: no exchange table.High rigidity enhanced aviation aluminum gantry.Rack and pinion structure, servo drive, secondary annealing treatment of high rigid welding frame with high accuracy and stability.
Working Area: 60" x 120 " (1525 mm x 3050 mm)
Laser Wattage: 1500 W / 2000 W/ 3000 W/ 4000 W
Continuous Wave fiber laser, 1.07 um wavelength:
Beam Quality: 1500 W / 2000 W/ 3000 W/ 4000 W
IPG Laser Generator:
Laser Head: RayTools (auto focus)
Control System: CypCut BCS 100
Cooling System: CWFL-1500, CWFL-2000, CWFL-3000, CWFL-4000 or Comparable
Driving System: Servo Motors XYZ Servo Motors: Schneider Y 2x1500W, X 1x1000W, Z 1x400W
Max Speed: 60m/min
Power Supply: Three phase 208V/ 240V / 480V (transformer included)
Overall Size: 233"L X 106"W x 90"H
Weight: 7716 lbs
Format: LXD, DXF, PLT, AI, NC etc.
High Quality Rack and Pinion Guide Rails:
