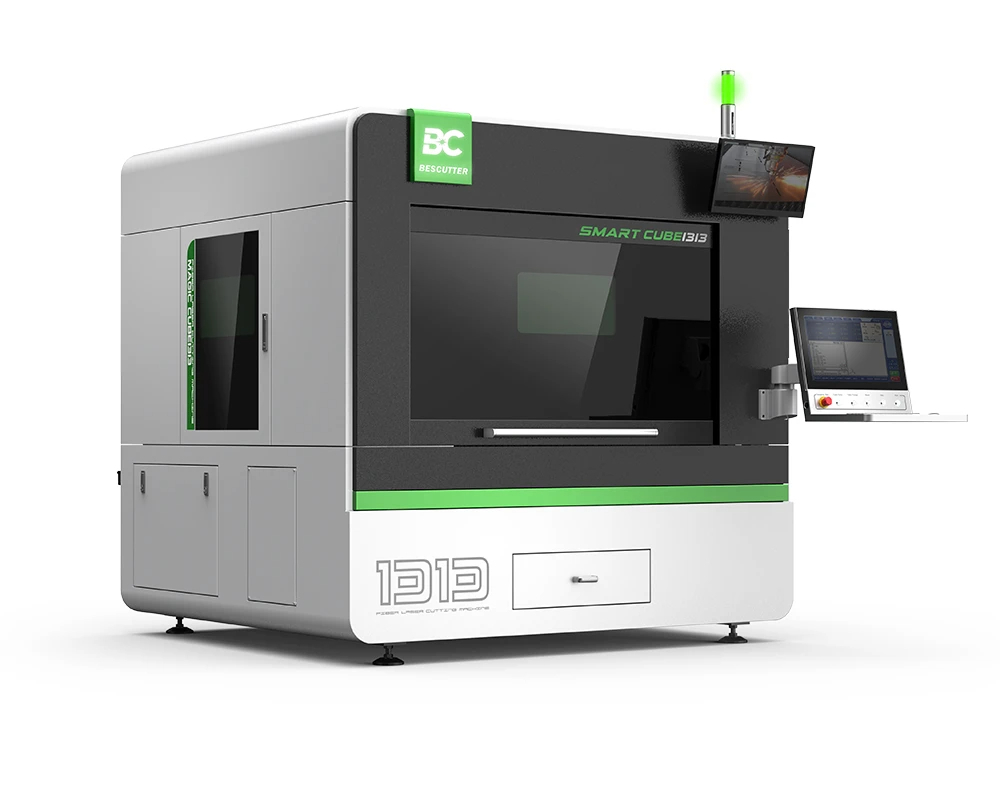

2021 Smart Cube 3kw or 4kw IPG Call for Special Price
Have one to sell?
ConditionUsed
1 available
FEATURES
• Small Fiber Laser Cutter With High - Precision.
• Its protective cover can prevent any dust and smoke during the process.
• Unparalleled versatility for cutting various metals, including low carbon steels, stainless steels, galvanidez sheets, as well as some high reflective metals, such as aluminum.
• Automatic concentrated lubrication function, automatic lubrication for traditional parts by system control. No manual intervention is needed to ensure the accuracy and service life of the moving part.
Working Size: 51" W x 51" L (1,300 mm x 1,300 mm)
X - Axis Travel: 51" (1,300 mm)
Y - Axis Travel: 51" (1,300 mm)
Z - Axis Travel: 4" (100 mm)
Laser Power: 1,000 / 1,500 / 2,000 / 3,000 / 4,000 W
X/Y Axis Positioning Accuracy: ±0.05 mm/m
X/Y Axis Repeated Positioning Accuracy: ±0.03 mm
Lubrication System: Automatic Lubrication (Lubrication reminder available)
Max Speed: 55"/s (84m/min)
Machine Weight: 5,500 lbs (2,500 kg)
Dimensions: 85" L x 91" W x 83"H (2150x2300x2120 mm)
Laser Resonator: IPG
Laser Head: RayTools
Controlling System: FSCUT2000S
Electromechanical: SCHNEIDER, SMC and etc
X-Y-Z Servo Motors: Y 2 x 1,500W - X 1 x 1,000W - Z 1 x 400W
