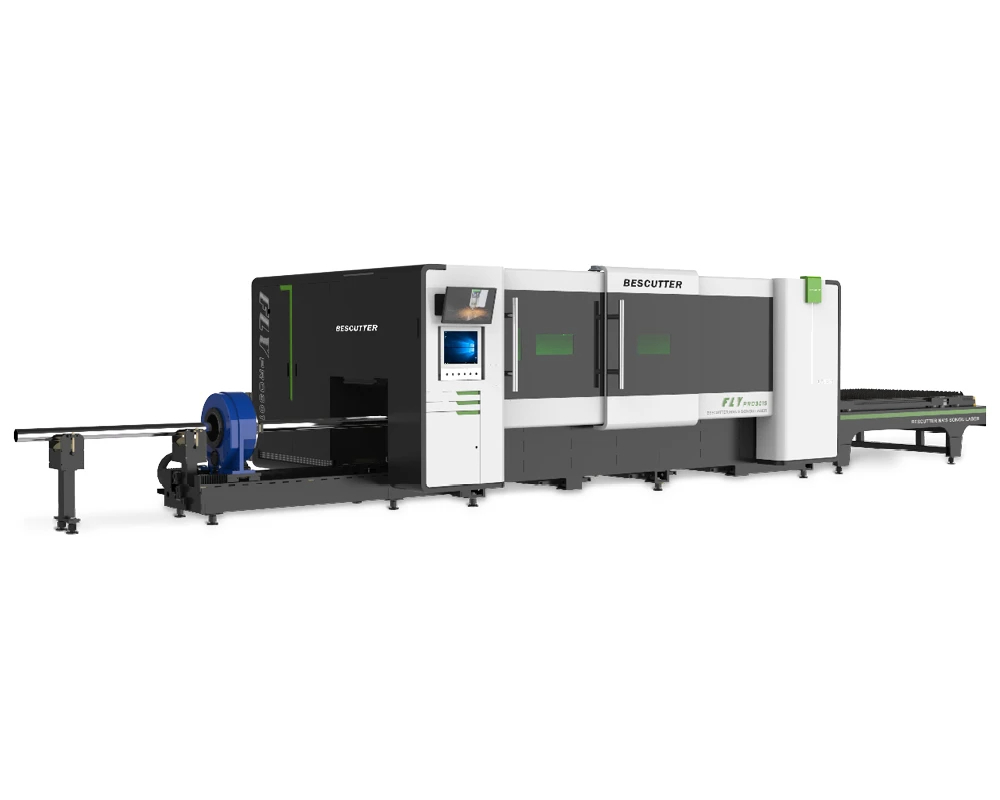

Fly Pro 1.5-15KW IPG Fiber Laser Metal Sheet and Pipe Cutter Full Enclosure with Parallel Shuttle Table
Have one to sell?
ConditionNew
1 available
New
Available for Both Metal Sheet & Tube CuttingTube Cutting Rotary Device: Support basic round and square tube cutting, standard tube diameter 0.78"-8.66" Laser Source: IPGMachine Body: High-rigidity welded body, compact design and stable performanceGantry: Special molding technique made aviation aluminum gantry, light weight, strong rigidity, fast response and stable running.Transmission System: High torque imported servo drive system and perfect laser welder gear system. Ensure the powerful driving, high accuracy cutting and excellent dynamic response.Z-axis System: High precision ball screw system. Laser Cutting Head: Raytools auto-focusing laser cutting head.Auto Exchanging Shuttle Tables: Parallel auto exchanging shuttle table, ensure synchronous running, good efficiency, reliable and stable.
Standard working area: 10' x 5' (3050 x 1550 mm)
Optional working area: 13' x 6.5' (4000 x 2000 mm)/ 20' x 6.5' (6100 x 2050 mm)/ 26' x 6.5' (8000 x 2000 mm)
Optional Laser Wattage: 1500W/ 2000W/ 3000W/ 4000W/ 6000W
X- axis distance: 120" (3050 mm)
Y- axis distance: 61" (1550 mm)
Tube X1- axis distance: 59" (1500 mm)
Tube A, B axis- distance: Infinite rotation
Tube diameter: Standard: 0.78"-8.66" (20-220 mm)
Z-axis distance: 11.8" (300 mm)
X, Y Two-axis coordinated positioning speed (MAX) : 140 m/min
Positioning acceleration (MAX): 1.5 G
Positioning accuracy: ±0.05 mm/m
Re-positioning accuracy: ±0.02 mm
Maximum sheet load weight: lbs (700 kg)
Maximum pipe load weight: Auto-loading: 220 lbs (100 kg) / Manual-loading: 440 lbs (200 kg)
Laser resonator: IPG
Laser head: Raytools: 1.5 -4 KW / Precitec: 6 KW
Controlling System: Cypcut
X-Y-Z Servo Motors: X-2x2900W; Y- 1x850W ; Z-1x750W
Machine body weight: Approximately 15,432 lbs (7000 kg)
Pipe rotation weight: Approximately 2204 lbs (1000 kg)
Exchanging shuttle tables & auxiliary weight: No pipe cutting 350" x 118" x 80" (8900 x 3000 x 2050 mm)
Dimension: With pipe cutting 429" x 142" x 80" (10900 x 3600 x 2050 mm)
