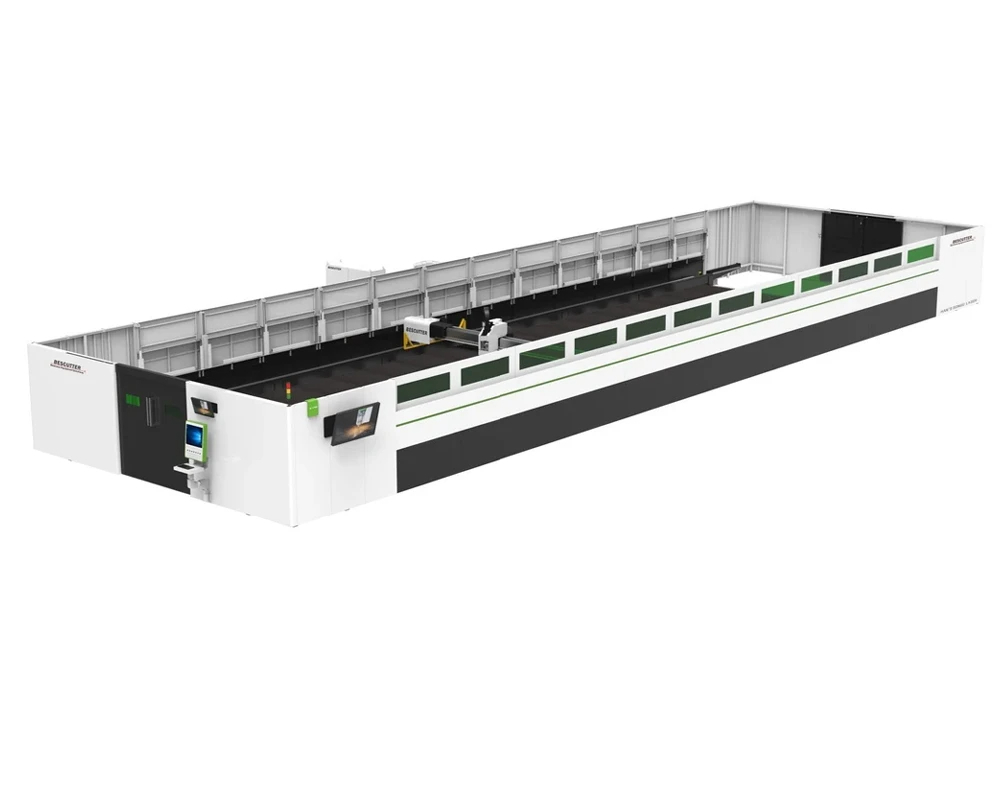

Giga Series 12KW 10'X40' IPG Fiber Laser Cutter
Have one to sell?
ConditionNew
1 available
New
Rail-typed typed splicing machine tool design, connect the front and rail side together precisely.IPG laser resonator PRECITEC laser cutting headCold drawn extruded aluminum gantry: Light weight, great rigidity, high dynamic and precise, robust structure, less deformation.Beckhoff CNC servo control systemServo control assisted gas: Reduce gas consumption during the movement without cutting to save cost.Dual servo motor driving system: Imported high precision rack & pinion system.Standard working area 12m x 3m. Optional working area: 25m x 4m.
Standard working area: 12m x 3m
Optional working area: 25m x 4m
X, Y Two-axis coordinated positioning speed (MAX) : 200 m/min
Positioning acceleration (MAX): 2.0 G
Positioning accuracy: ±0.05 mm/m
Re-positioning accuracy: ±0.02 mm
Maximum load weight: 890 kg
Laser resonator: IPG (Germany Brand)
Laser head: PRECITEC (Germany Brand)
Controlling System: Beckhoff (Germany Brand)
X-Y-Z Servo Motors: X-2x4780W; Y- 1x3500W ; Z-1x940W
Processor: Dual CoreTM i3 CPU +3.1GHz
RAM: 4GB
Hard Disk: 1TB
