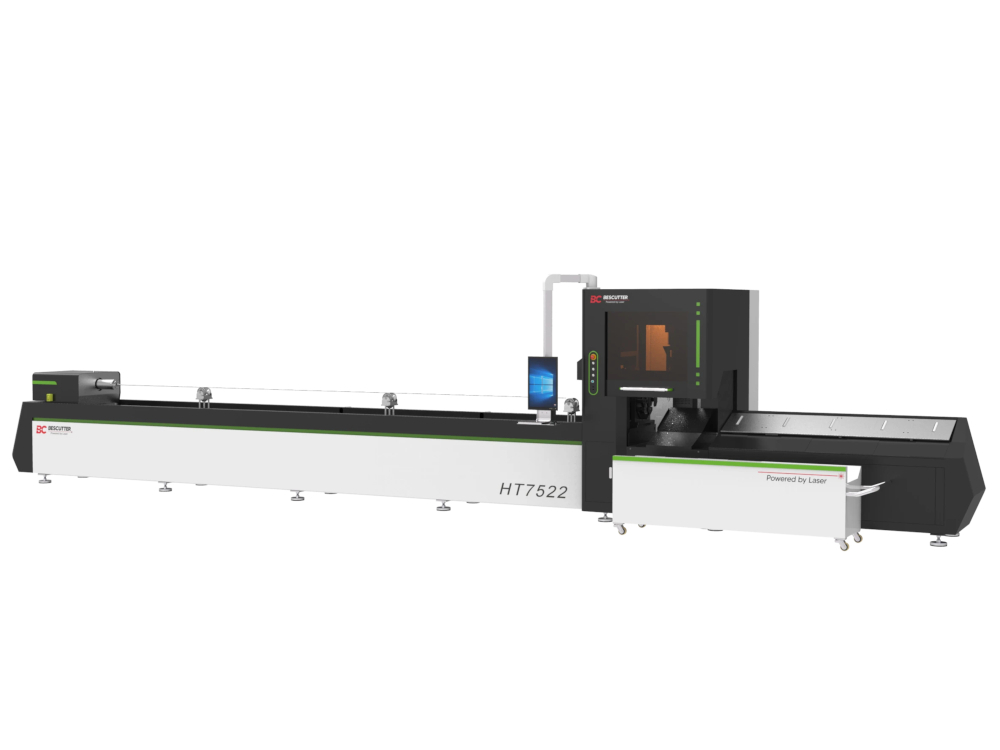

Tube Master 1-4KW IPG Fiber Laser Tube Cutting Machine
Have one to sell?
ConditionNew
1 available
New
Optional Diameter: Ø10mm-Ø120mm (0.39" - 4.7")
Free Form Tube Support: Free form tube production of U/L/H/T channels, Obround, oval and polygon etc.
FASTCUT CNC system: Integrates professional tube cutting platform, powerful but simple for operation.
- IPG laser resonator
- Integrated structure design, compacted layout, small size occupation.
Tube range (length): 295" (7500 mm)
Tube diameter: Standard: 0.78"- 8.66" (20- 220 mm) | Optional: 0.39"- 4.7" (10- 120 mm)
X-axis: 295" (7500 mm)
Y-axis: 7.87" (200 mm)
A, B-axis: Infinite Rotation
Loading Capacity: 220 Chuck: 342 lbs; 120 Chuck: 154 lbs.
X, Y-axis positioning accuracy: ±0.03 mm/1000 mm
X, Y-axis re-positioning accuracy: ±0.05 mm
A, B-axis positioning accuracy: ±30°
A, B-axis re-positioning accuracy : ±10°
X, Y-axis max positioning speed: 100 m/min
Max positioning speed: 100 rpm
Laser resonator: IPG 2 KW (Germany Brand)
Optional laser wattage: IPG 1 KW/ 1.5 KW/ 3 KW/ 4 KW (Price Varies)
Laser head: Raytools
