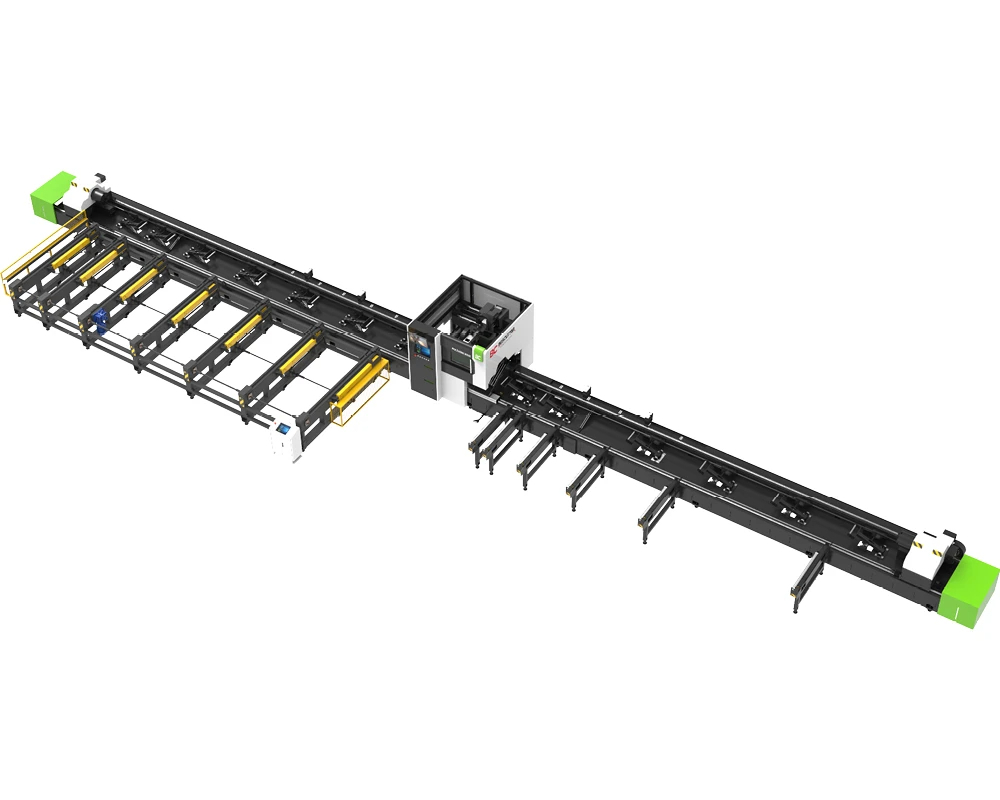

3-Chuck Heavy Tube Cut 2-6KW IPG Fiber Laser Pipe Cutting Machine with Auto Loading
Have one to sell?
ConditionNew
1 available
New

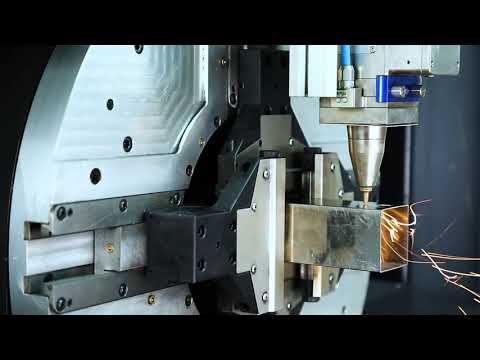

Cut variety of tubes, such as: round tube, square tube, triangle tube, rectangular tube, oval tube and waist round tube. IPG laser resonator Germany PRECITEC cutting head FASTCUT CNC system: Integrates professional tube cutting platform, powerful but simple for operation, with user-friendly HMI. 0 waste tube cutting1 whole tub process2 cutting stations3 chucks4 following support points1102 lbs loading ability29.5 feet tube support or tailoredAuto loading
Tube range (length): 29.5' (9000 mm)
Tube diameter: Square Tube Side: 0.78"- 8.86" (20- 225 mm) | Round Tube Dia: 0.59"- 12.2" (15- 310 mm)
X-axis: 29.5' (9000 mm)
Y-axis: 8.86" (225 mm)
Auto-loading tube length: 157"-354" (4000-9000mm)
Un-loading tube length: 0- 236" (0-6000mm)
CNC System: FSCUT5000
X, Y-axis positioning accuracy: ±0.05 mm/1000 mm
X, Y-axis re-positioning accuracy: ±0.03 mm
A, B-axis positioning accuracy: ±30"
A, B-axis re-positioning accuracy : ±10"
X, Y-axis max positioning speed: 100 m/min
Max positioning speed: 60 rpm
Laser resonator: IPG 2 KW (Germany Brand)
Optional laser wattage: IPG 2 KW/ 3 KW/ 4 KW/ 6 KW
Laser head: PRECITEC (Germany Brand)
Machine Weight: 28,660 lbs (13,000 kg)
Dimensions (L x W x H) (without auto-loading): 984"x 169" x 110" (25000 x 4300 x 2800 mm)
Dimensions (L x W x H) (with auto-loading): 984"x 248" x 110" (25000 x 6300 x 2800 mm)
