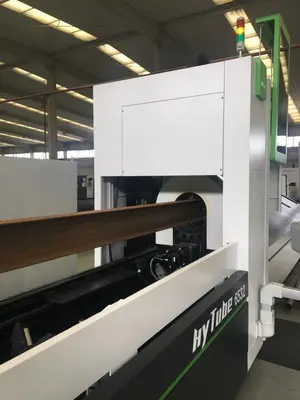

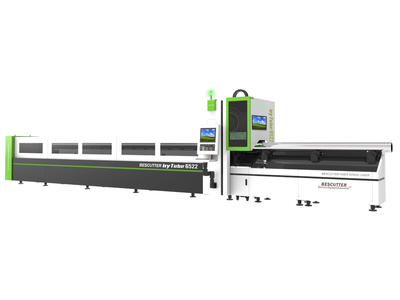

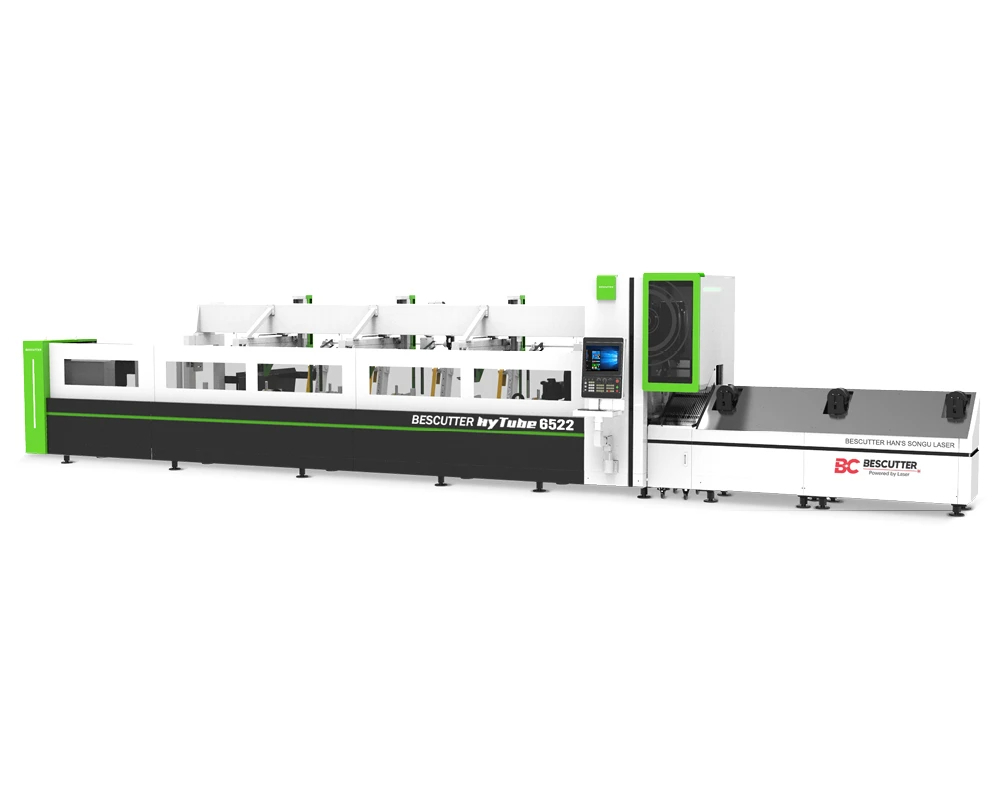

HyTube 1-4KW IPG Fiber Laser Tube Cutting Machine with Auto Tube Loading
Have one to sell?
ConditionNew
1 available
New
IPG laser resonator Germany PRECITEC cutting head: high precision with auto-focus.FASTCUT CNC system: Integrates professional tube cutting platform, powerful but simple for operation, with user-friendly HMI.Special designed flexible tube support device: Keep the device grip the tube tightly during the tube feeding and rotating.Automatically loading by whole package tube: Reduce staff number and improve the processing efficiency.Tube type auto-recognition system: Different types tubes can be mixed loading together.High precision & high-pressure servo-control valve: Precisely control the cutting gas and pneumatic chuck.Linear positioning speed 100 m/min; rotation positioning speed 120 m/min.Cut variety of tubes, such as: round tube, square tube, triangle tube, rectangular tube, oval tube and waist round tube.Optional Diameter: 160mm 6.3" | 220mm 8.6" | 320mm 12.6' | 400mm 15.7" | 500mm 19.7"
Tube range (length): 244" (6200 mm)
Tube diameter: Standard: 0.78"- 8.66" (20- 220 mm) | Optional: 0.78"- 12.60" (20- 320 mm)
X-axis: 246" (6250 mm)
Y-axis: 7.87" (200 mm)
A, B-axis: Infinite Rotation
Z-axis: 6.30" (160 mm)
X, Y-axis positioning accuracy: ±0.03 mm/1000 mm
X, Y-axis re-positioning accuracy: ±0.05 mm
A, B-axis positioning accuracy: ±30°
A, B-axis re-positioning accuracy : ±10°
X, Y-axis max positioning speed: 100 m/min
Max positioning speed: 100 rpm
Laser resonator: IPG 2 KW (Germany Brand)
Optional laser wattage: IPG 1 KW/ 1.5 KW/ 3 KW/ 4 KW (Price Varies)
Laser head: PRECITEC (Germany Brand)
Machine Weight: 16534 lbs (7500 kg)
Dimensions (L x W x H): 472"x 169" x 110" (12000 x 4300 x 2800 mm)
