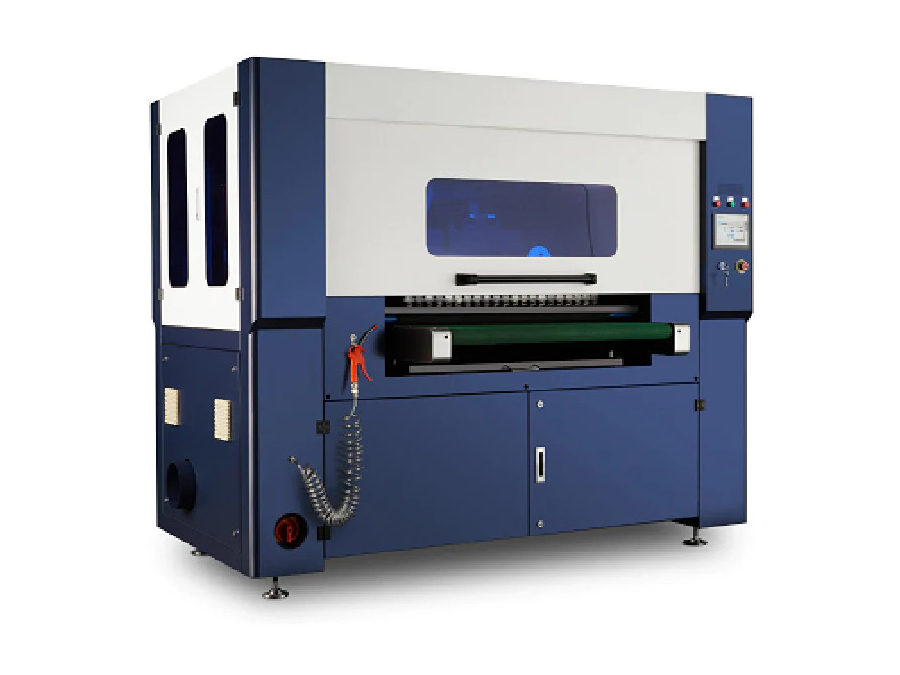

BesCutter 1000TK Automatic Sand Belt Deburring Machine
Have one to sell?
ConditionNew
1 available
New
Memory of process parametersStand belt dynamic balance systemAbrasive automatic compensationIntelligent startup and stopRemove silhouette edge slag, soft burr, hard burr, oxide layerCombination of triangular stand belt and brush sand clocks for grinding process

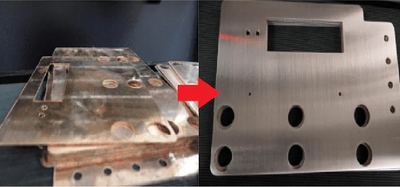

Professional equipment with three groups of grinding tools to polish surfaces and remove imperfections such as:Cutting slagStamping sharp edgesBurr of the inner/outer contour edgeBurr upside down corners
Mainframe Dimensions: 6'x8'x7' (1850mm x 2360mm x 2080mm)
Max Working Width: 39" (1000mm)
Minimum Part Size: 6.3"x0.8"x0.02"
Working Thickness: 0.02" - 4" (0.5mm - 100mm)
Conveyor Speed: 31-236 inch/min (0.8 - 6 m/min)
Sand Belt Speed: 315-787 inch/s (8 - 20 m/s)
Brush Speed: 295 inch/s (7.5 m/s)
Maximum Power: 13 kW
Rated Voltage: AC 380V/50Hz
Noise: 83±2 dB
Weight: 5401 lbs (2450 kg)
Abrasive Belt Configuration: Abrasive Material: Alumina / Zirconium Oxide / CeramicsAbrasive Producing Area: Germany / Japan / ChinaAbrasive Specification (#): 40 / 60 / 80 / 120 / 180
Sand Brush Configuration: Abrasive Material: Alumina / Zirconium Oxide / CeramicsAbrasive Producing Area: Germany / Japan / ChinaAbrasive Specification (#): 80 / 120 / 180 / 240 / 400
