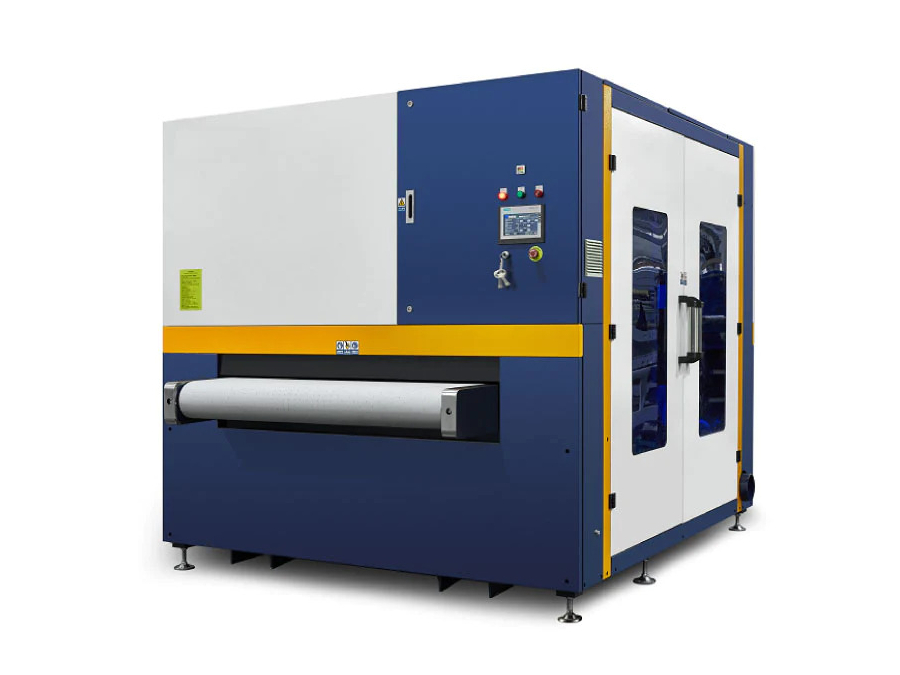

BesCutter 1000BR Automatic - Deburring & Finishing
Have one to sell?
ConditionNew
1 available
New
Strong adsorptive force, satisfy smaller partsBrush surface, remove silhouette edge slag burrMemory of process parametersAdsorption cavity automatic cleaningAbrasive material automatic cleaningIntelligent awareness protection

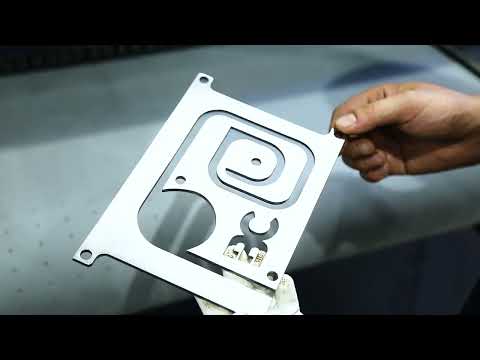

Multifunctional deburring and chamfering equipment. Incorporating wide width drawing machine and roller brush grinder to polish surfaces and remove imperfections such as:Hard burr produced by laer, flame, plasma and other hot-working processesBurrSharp edge of NTCDie stampingSlag
Mainframe Dimensions: 10'x6.4'x7' (3034mm x 1960mm x 2162mm)
Max Working Width: 39" (1000mm)
Minimum Part Size: 9.4"x1.2"x0.02"
Working Thickness: 0.02" - 4" (0.5mm - 100mm)
Conveyor Speed: 39-319 inch/min (1 - 8 m/min)
Abrasive Belt Speed: 87-433 inch/s (2.2 - 11 m/s)
Rolling Brush Speed: 9-18 r/sec
Revolution Speed: 9-19 r/min
Maximum Power: 41 kW
Rated Voltage: AC 380V/50Hz
Weight: 7055 lbs (3200 kg)
Noise: 83±2 dB
Abrasive belt configuration: Abrasive Material: Alumina / Alumina White CoatingAbrasive Producing Area: Germany / Japan / ChinaAbrasive Specification (#): 80 / 120 / 180 / 240 / 400
Rolling Brush Configuration: Abrasive Material: Sequence direction rolling / Random direction rolling brushAbrasive Producing Area: Germany / Japan / ChinaAbrasive Specification (#): 80 / 120 / 180 / 240 / 400 / 600
