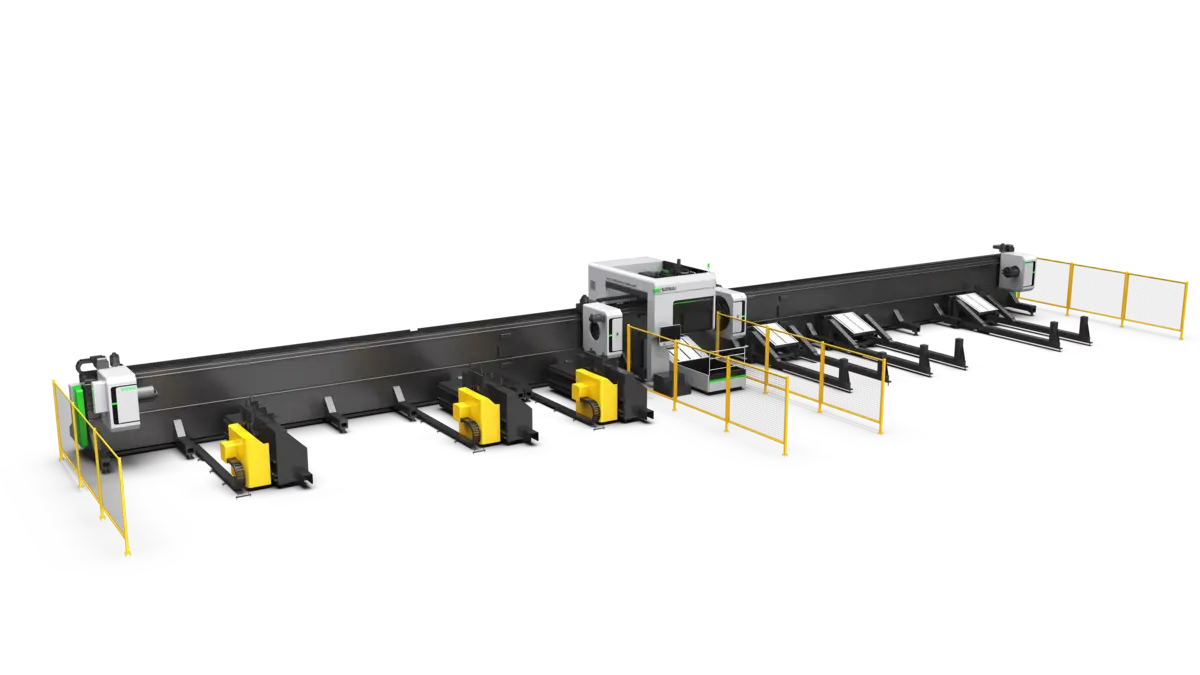

Hytube Titan TUBE CUTTER 6000W 20" Dia 4 Chuck Fiber Laser Pipe Cutting Machine
Have one to sell?
ConditionNew
New
FEATURES
• Cut variety of tubes, such as: round tube, square tube, triangle tube, rectangular tube, oval tube and waist round tube.
• Hans Photonics laser resonator
• FASTCUT CNC system: Integrates professional tube cutting platform, powerful but simple for operation, with user-friendly HMI.
• 1 whole tube process
• 2 cutting stations
• 3 chucks
• 4 following support points
• 40lb per feet tube loading
• Auto loading
Tube range (length) 40' (12000 mm)
Tube diameter Up to 20" cross diagonal
X-axis 29.5' (9000 mm)
Y-axis 8.86" (225 mm)
un-loading tube length 0- 236" (0-6000mm)
CNC system FSCUT5000
X, Y-axis positioning accuracy ±0.05 mm/1000 mm
X, Y-axis re-positioning accuracy ±0.03 mm
A, B-axis positioning accuracy ±30"
A, B-axis re-positioning accuracy ±10"
X, Y-axis max positioning speed 100 m/min
Max positioning speed 60 rpm
Laser resonator Hans Photonics 6KW
Optional laser wattage 3 KW/ 4 KW/ 6 KW
Laser head RayTools
Machine Weight 40,000 lbs
Dimensions (L x W x H)
auto-loading not included 984"x 169" x 110" (25000 x 4300 x 2800 mm)
Dimensions (L x W x H)
auto-loading included 984"x 248" x 110" (25000 x 6300 x 2800 mm)
