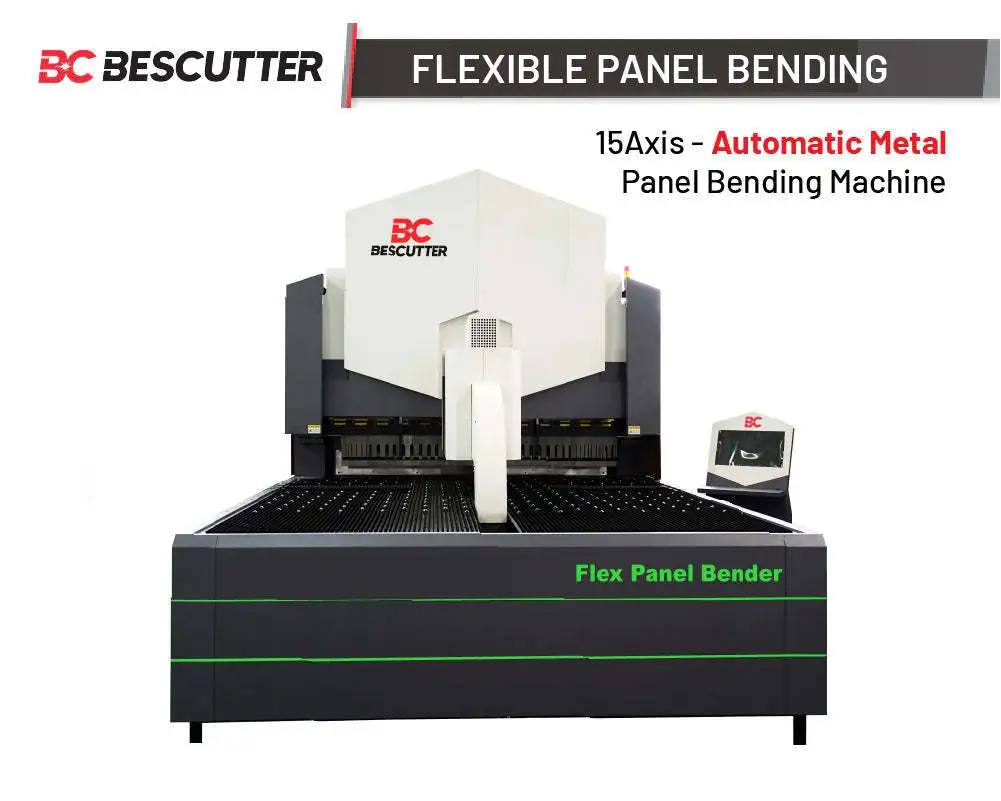

Flexible Panel Bending 15Axis - Automatic Metal Panel Bending Machine
Have one to sell?
ConditionNew
New
FEATURES
The intelligent flexible bending center is a high-tech product developed and produced for the sheet metal industry to improve production efficiency and reduce labor intensity, costo, maintenance, and power consumption. The control system realizes 13-axis concurrent linkage in the true sense, the bending action is smooth, and the mechanical operation is highly coordinated.
Feeding structure: Pressing arm
System minimum accuracy: 0.001mm
Max bending speed: 0.2 second/time
Max feeding speed: 90m/min (295 ft/min)
Max.bending width: 2500mm (8.2') / 2000mm (6.5') / 1400mm (4.6')
Max.Bending size (8.2'): L2500mm X W1250mm (8.2' x 4.1')
Max.Bending size (6.5'): L2000mm X W1250mm (6.5' x 4.1')
Max.Bending size (4.6'): L1400mm X W1400mm (4.1' x 4.1')
Max. Bending height: 170mm (6.7")
Min. Bending height: 3mm (0.12")
Min.arc radius: 0.5mm (0.02)
Rated power: 380V
Motor power: 79 KW
Machine size (8.2'): L565cm X W300cm X H340cm (222"x118"x133")
Machine size (6.5'): L510cm X W265cm X H330cm (200"x100"x129")
Machine size (4.6'): L440cm X W190cm X H290cm (173"x75"x114")
Total weight: About 12 /16 / 19 tons
Max. Bending width: stainless steel 1.2mm, cold panel 1.5mm & aluminum panel 2.0mm
Min. Panel width: 0.35mm (0.014")
Four side forming min. Inner size: About 140mmx190mm（ excluding inverted folded side)
Double side forming min. Inner size: About 140mm(5.5")
Bending angle: 0-180 degree
Axis: 15
Coupling: TECMEN, Sino-German joint venture brand
Electrical components: Schneider, French Brand
Oil system: Taiwan Yuxiang
