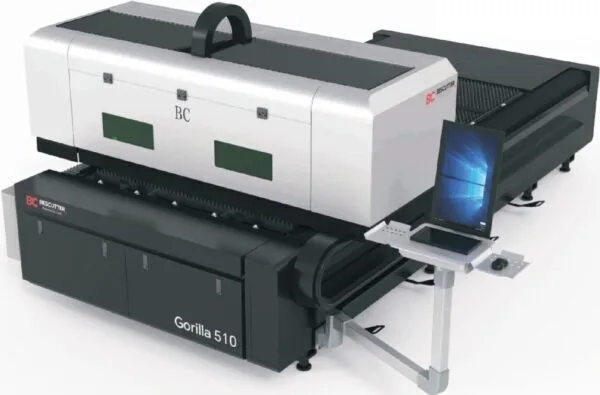

Bescutter Gorilla 510′ 5′ x 10 3kW Fiber Laser with Gantry Enclosure

Standard Features:

Machine Chassis: High rigidity body with compact design for stable performance. With robust worktable design to support heavy materials

Third Generation Aluminum Bridge: Manufactured with a special molding technique, lighter, with higher precision and high rigidity for faster response speed and stable operation

Z-Axis System: Equipped with a high-precision ball screw system to achieve higher cutting speeds while maintaining precision in every movement

Transmission System: A synchronous mechanical system is installed on both sides of the bridge, featuring high-torque servo motors and a welded gear system. This configuration guarantees smoother movement and reduces vibration

Reducer Motor: The optimized gear geometry in this model, and all other models, ensures exceptionally smooth operation. Under special ambient conditions, the gear unit can be equipped with two shaft seals

iPad-Style Display: Its vertical screen offers a high response speed, increased contrast, a wider viewing angle, low power consumption, and high resolution. Additionally, it features high brightness levels and lower reflectivity, contributing to greater solidity and durability of the solid glass panel

Laser Source Bescutter Beam Force: Han’s Photonics multi-module continuous wave (CW) fiber laser features a newly developed high-power optical module boasting a remarkable photoelectric conversion efficiency exceeding 40%. This advancement fundamentally diminishes the machine’s power consumption

RayTools Laser Head: Configurable from Software to achieve continuous focus for fast cutting with different material thicknesses. The reference uses the lens assembly to collimate and focus the laser beam, which can achieve the diffraction-limited optical effect

– Improved optical configuration; streamlined and efficient airflow design

– The autofocus range; from +9~ -14 mm, accurate to 0.05 mm

– Drawer-type lens mount; with easy and quick access to the protective lens

Servo Motor – Schneider: Widely utilized in the fields of robotics, camera focusing, automation, and conveyor belt systems, servo motors and drives are now essential components in any machinery that demands precise position control

Schneider Electrical Components: Highly flexible Schneider cable, suitable for prolonged work

Automatic AirTac-SMC Lubrication: The lubrication period can be set in the software to ensure the accuracy of the transmission system

S&A Industrial Water Chiller: Temperature control with +/- 0.5 degrees C accuracy. It is an intelligent temperature controller with manual and automatic modes. Dual temperature settings cater to the varied requirements of both the fiber laser device and the lens. Multiple alarm functions are included; compressor time-delay protection, compressor overcurrent protection, water flow alarm, and high/low-temperature alarm. Quality seals; CE approval, RoHS and REACH approval. Tank capacity; 16L of distilled or deionized water
